Blum Aventos HF Lift Mechanism BLUMOTION Set (Power factor 5350-10150) 20F2500.05

To determine power factor - Multiply the cabinet height (mm) by the combined door weight include handle
weight (kg).
Blum AVENTOS HF Lifts: For wall cabinets with two part bi-fold fronts and minimal space requirements
above.

The bi-fold lift system is ideal for taller wall cabinets with large fronts because the handle remains
easy to reach.Simple to install and smooth to operate.

The AVENTOS HF mechanism effortlessly lifts both heavy and light doors,

while the variable stop ensures the fascia always remains in the desired position.

As the door closes, integral soft-close dampers effortlessly and silently draw the door shut,
preventing slamming.

⬇ AVENTOS brochure

• For a two part door which folds together in the centre when opening
• Innovative finger safety feature built into the centre hinge
• Handle stays within easy reach on tall wall cabinets
• Ideal for use with fronts of different heights

Versatility - Can be used with wooden fronts, wide and narrow aluminium frames. Adapability - Combine with the

SERVO-DRIVE electrical motion support system - for the entire kitchen or individual applications.

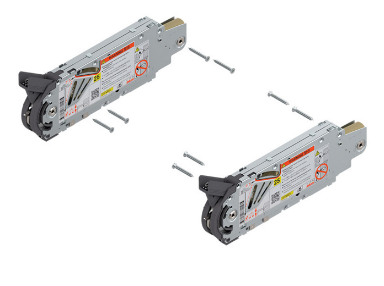

AVENTOS HF lift mechanism: 20F2500.05
Power factor: 5350-10150
Minimum internal cabinet depth: 278mm
Fixing to cabinet: Screw-on
Closing mechanism: BLUMOTION soft close
Lift material: Steel/Zinc plated
