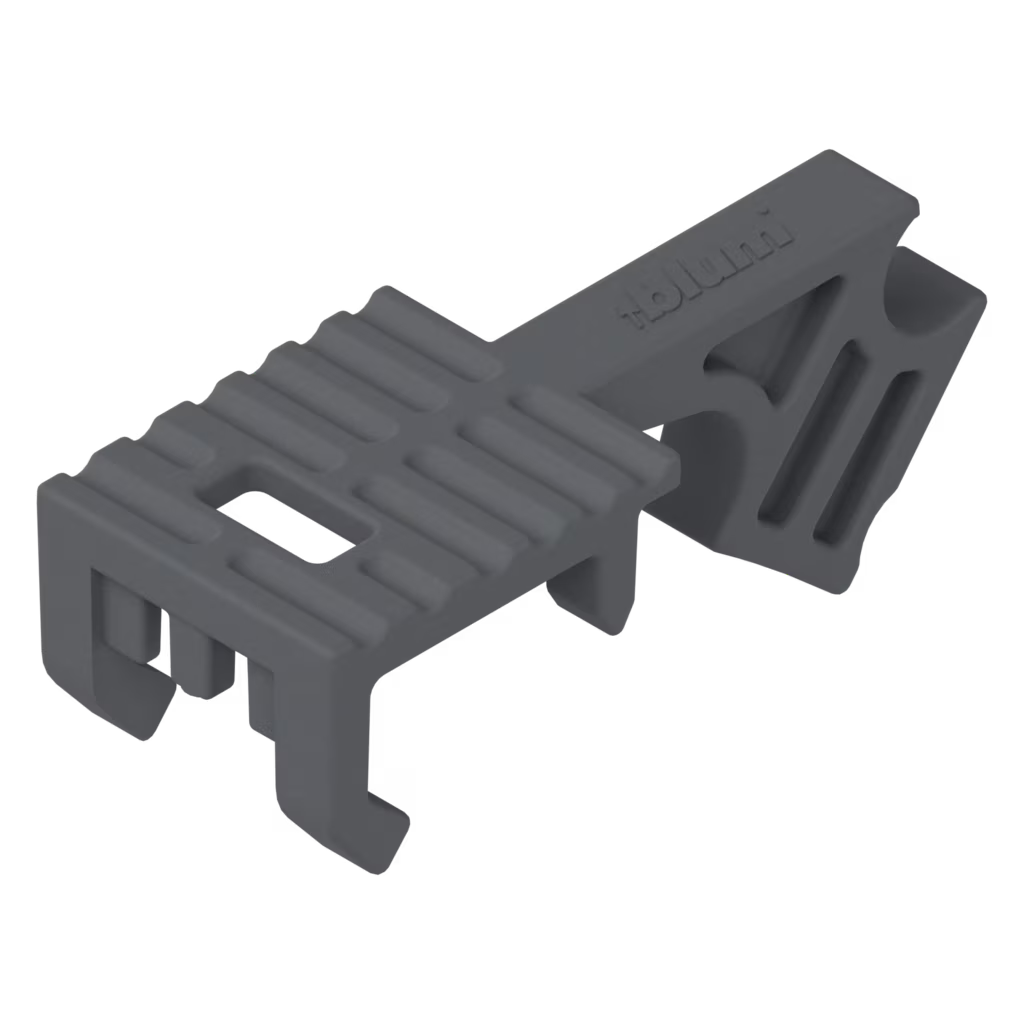

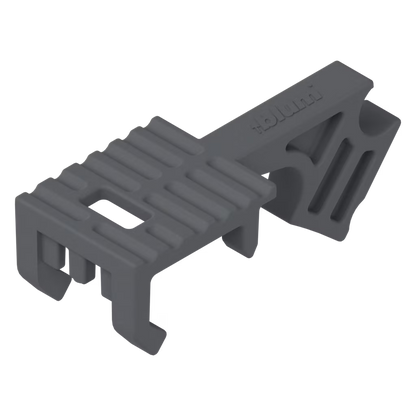

Blum Aventos Blumotion (soft close) HK-S 75° Opening Angle Stop Per Piece 20K7A11

Keep your door from opening too far to protect objects above or to keep the

handle within reach. This restrictor clip will keep the door from opening farther than 75°.

The AVENTOS HK-S Series has only three lift mechanisms and covers smaller door

widths and heights. This simplifies planning, ordering and warehousing.

Providing perfect motion for small cabinets with lift up doors is the goal of AVENTOS HK-S.

With the ability to stop at any opening position, it has been specially designed in

terms of size and performance to provide the consumer a perfect experience.

It has easy adjustment and installation and works with both frame and panel cabinet applications.

With AVENTOS HK-S, the one-piece door front lifts up. Optimal for low cabinet heights,

its applications include above refrigerator, accent cabinets or wall cabinets.

Features:

• Restricts opening angle of the door
• Prevents the door from hitting an object above or keeps the handle within reach on very high cabinets
• One required per lift mechanism
• 75° angle
• Above cabinet clearance (mm): Top door height x .17 - 15 + door thickness
