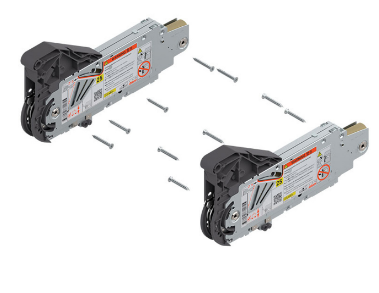

Blum Aventos HL BLUMOTION Mechanisms Lift Set 20L2900.05

Description:

AVENTOS HL lift mechanism 20L2900.05 for use with cabinet heights:
350 to 399mm (door weight 13.50 up to 20.00kg)
400 to 550mm (door weight 10.50 up to 20.00kg)
450 to 580mm (door weight 8.25 up to 16.50kg)
Maximum door width 1800mm

Blum AVENTOS HL Lifts: For wall cabinets where you want to lift the one part front parallel to the cabinet, ideal for hiding microwaves or small appliances and suited to rooms with high ceilings. Simple to install and smooth to operate, the surface-mount mechanism installs to the cabinet side and eliminate the need for further hinges. The AVENTOS HL mechanism effortlessly lifts both heavy and light doors, while the variable stop ensures the fascia always remains in the desired position. As the door closes, integral soft-close dampers effortlessly and silently draws the door shut, preventing slamming.

⬇ AVENTOS brochure

• Single door that lifts up parallel to the cabinet
• Suitable for high ceilings or where there is cabinets/shelving above
• Ideal for cabinets concealing small appliances

Versatile use of materials - can be used with wooden fronts, wide and narrow aluminium frames, or even thin fronts of just 8mm or more with EXPANDO T. Can be combined with the SERVO-DRIVE electrical motion support system - for the entire kitchen or individual applications.

AVENTOS HL lift mechanism: 20L2900.05
Minimum internal cabinet depth: 278mm
Minimum internal cabinet height: 174mm
Fixing to cabinet: Screw-on
Closing mechanism: BLUMOTION soft close
Lift material: Steel/Zinc plated
