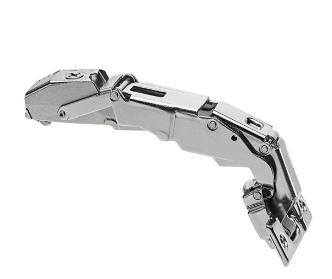

BLUM CLIP TOP HINGE 155° Unsprung Zero Protrusion INSERTA hinge 70T7590.TL

Description:

70T7590.TL.ONS - Onyx black hinges for overlay door applications -

Dark furniture radiates sleek elegance.

Hinges in onyx black discreetly complement furniture and create visual impact.

CLIP top nil-protrusion hinges - A Blum proven classic. Blum technology and

reliability ensures every door opens and closes with reliable ease.

A nil-protrusion application is required for cabinets with internal drawers.

The hinge enables the drawer to pull forward past the door, unhindered.

Application: Overlay
Opening angle: 155°
Boss assembly: Inserta
Hinge material: Steel/Onyx black
Closing mechanism: Unsprung

IThree-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

CLIP top hinges combined with Blum’s wide range of mounting plates offer height adjustment.

CLIP top mechanism removes the need to screw the hinge to the plate.
