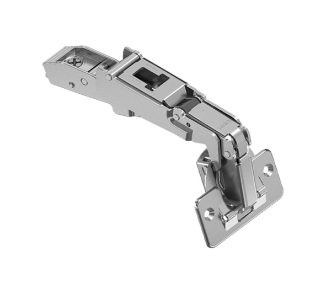

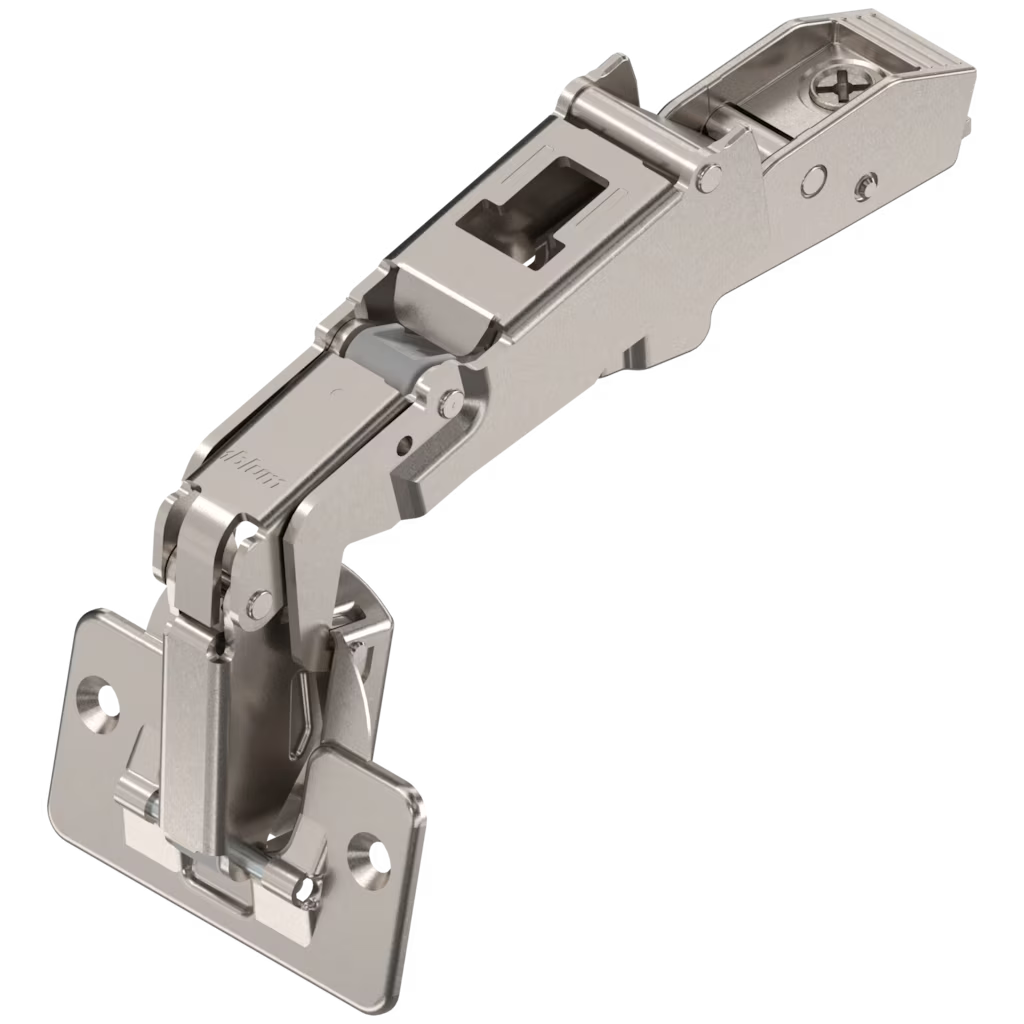

BLUM CLIP TOP HINGE 170° Unsprung Screw-on hinge 70T6550.TL

Description:

70T6550.TL - CLIP top hinges - A Blum proven classic.Blum technology and innovation ensures every door opens and closes with reliable ease.

An unsprung hinge is required for push to open/handleless doors, and is used in conjunction with a Tip-On device.

This 170 degree hinge aides access to the cabinet’s contents, with its wide opening angle.

 Please note: due to the hinges design, it is not suitable for use on cupboards or furniture

that are accessible or reached by small children. In this instance we recommend the 155°

nil-protrusion hinge be used.

Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

CLIP top hinges combined with Blum’s wide range of mounting plates offer height adjustment.

CLIP top mechanism removes the need to screw the hinge to the plate.

Door thickness: 16 to 22mm *Trial application is recommended in excess of 22mm or consider using

nil-protrusion hinge.
Application: Overlay
Opening angle: 170°

Boss assembly: Screw-on
Hinge material: Steel/Nickel plated
Closing mechanism: Unsprung
