D&D Technologies DD TECH KWIKFIT ALU SELF-CLOSING ADJUST HINGE 2 SIDE FIX LEGS BLACK

D&D KWIKFIT™ Aluminium Hinge

A traditionally styled, self-closing gate hinge.

The D&D KWIKFIT™ Aluminium adjustable, self-closing gate hinges are an ideal choice for light to medium-weight gates around the home. Tough, powdercoated aluminium construction with 6 adjustable tension settings provide a finer self-closing adjustment to suit a range of metal gates. No rusting, no binding, no sagging and no staining. Smooth, reliable closure. Side-fitting legs provide versatility and extra fitting strength. Recommend 12-guage fasteners.

Patented Tension Adjustment
Adjust tension from both ends (tension adjustment always facing up) with 6 tension settings for finer adjustment (suit a range of metal gates). Single-handed tension adjustment (using slot-head screwdriver)

Polymer Pivot Design
Low-friction polymer pivot washers provide long life and low maintenance

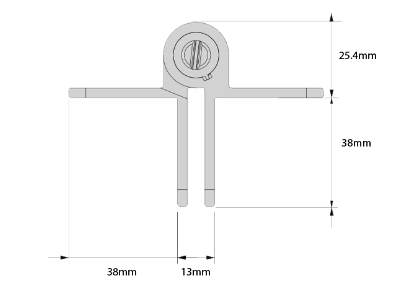

Side-fixing Legs
For quick alignment during installation plus added fixing strength

Features

• Aluminium construction with powder-coated finish

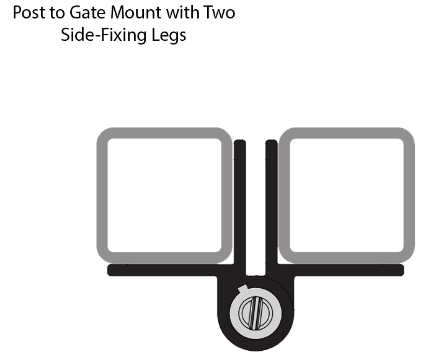

• Mounts post to post or wall if no post is available
• Internal stainless steel closing spring
• D&D-patented tension adjustment
• One-handed tension adjustment from either end
• Reversible mounting (right or left handed installation)
• Low-friction polymer washer material
• Two side fixing legs for added strength
• Self-closes gates up to 20kg (44lbs)

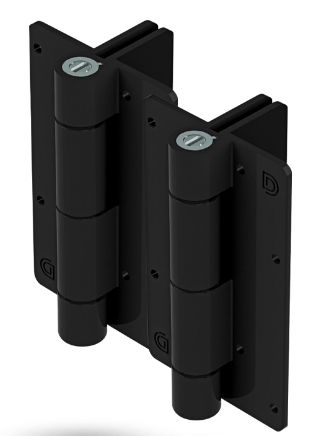

• Supplied in trade pack - 1 pair

Specifications

• Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Security Gate, Privacy Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Self-Closing Gate Weight: Up to 20kg (44lbs)
• Approximate Gate Width: 900mm
• Approximate Gate Height: 1500mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 25mm+
• Ideal Gate Gap: Fixed at 13mm
• Fixing Method: Screw-On

Finish
Black
