D&D Technologies DD TECH SHUTIT BADASS PLATED ORIGINAL ,ALUMINUM & HEAVY DUTY HINGE
SKU: CI3000
D&D Technologies DD TECH SHUTIT BADASS PLATED ORIGINAL ,ALUMINUM & HEAVY DUTY HINGE

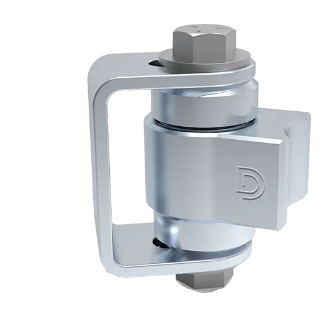

D&D Shut It® BadAss™ Original Hinge
The D&D SHUTIT® Original BadAss gate hinge is CNC machined to the tightest tolerances in the industry. Due to the D&D SHUTIT® Original BadAss unique bushing design, like all other D&D SHUTIT® gate hinges, produces near frictionless movement with maintenance free usage. Available in Steel or Rusted Finish.
Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.
High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.
Features : ORIGINAL
Specifications
Finish
Zinc
The D&D SHUTIT® Original BadAss gate hinge is CNC machined to the tightest tolerances in the industry. Due to the D&D SHUTIT® Original BadAss unique bushing design, like all other D&D SHUTIT® gate hinges, produces near frictionless movement with maintenance free usage. Available in Steel or Rusted Finish.
Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.
High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.
Features : ORIGINAL

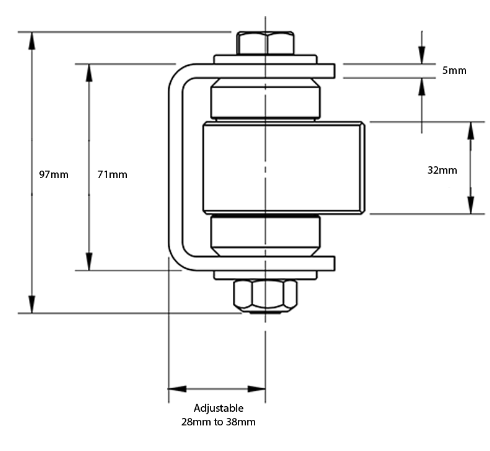

- Adjustable bracket for precise installations
- Two sealed maintenance-free bearings
- Ideal for flat and round post installations
- Load rating per gate: 900kg (2,000 lbs)
- Maximum gate weight: 500kg (1,100 lbs )
- Steel bracket and body
- Hinge weight 1.1kg
- Supplied in trade pack - 1 each

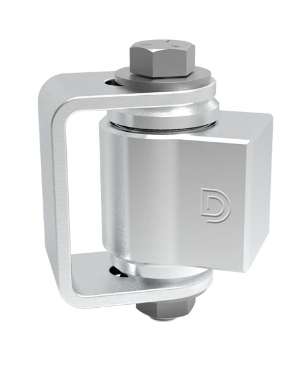

- Two sealed maintenance free bearings
- Adjustable bracket for precise installations
- Perfect for that high-end installation
- Ideal for flat post installation
- Load rating per gate: 450kg (1,000 lbs)
- Maximum gate weight: 270kg (600 lbs)
- Aluminium bracket and body
- Hinge weight 1kg
- Supplied in trade pack - 1 each

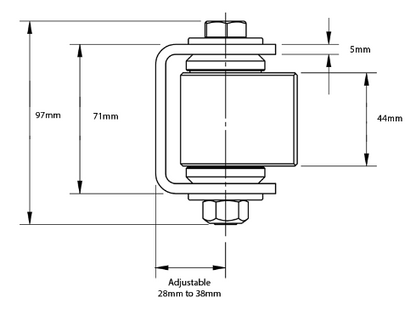

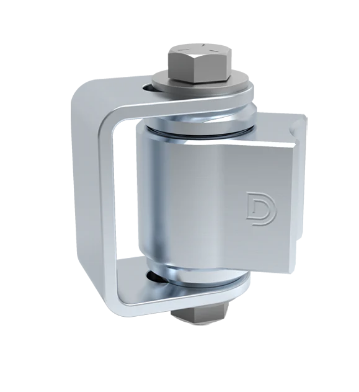

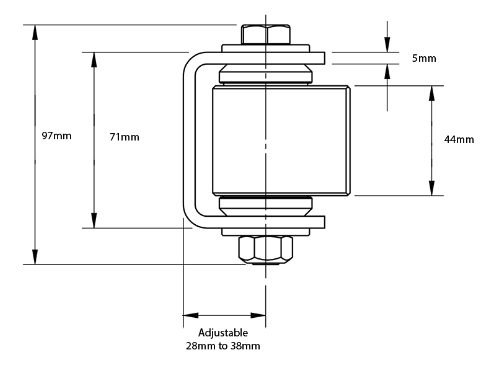

- Three sealed maintenance free bearings
- High temp[ bearings sfe to powdercoat
- Adjustable bracket for perfect installations
- Ideal for square or round-post installations
- Holds 50% more load than the Original
- Load rating per gate:1,360kg (3,000 lbs)
- Maximum gate weight: 680kg (1,500 lbs)
- Steel bracket and body
- Hinge weight 1.6kg
- Supplied in trade pack - 1 each
Specifications
- Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Type: Non Self-Closing
- Gate Material: Aluminium, Steel or Ornamental Iron
- Approximate Gate Width 2000mm
- Approximate Gate Width 3000mm
- Gate Frame/Post Shape: Square-to-Square
- Minimum Post Size: 38mm+

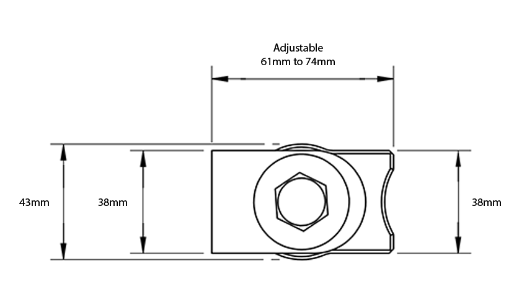

- Ideal Gate Gap: 61mm to 74mm
- Fixing Method: Weld-On
Finish
Zinc
