D&D Technologies DD TECH SHUTIT BADASS STEEL TO STEEL ,FACE MOUNT & ALUMINIUM HALF BOLT-ON HINGE

D&D Shut It® BadAss™ Bolt-On Hinge

The D&D Shut It® BadAss™ Bolt-On Hinge was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to the D&D Shut It® BadAss™ unique bushing design The D&D Shut It® BadAss™ Bolt-On Hinges, like all other D&D Shut It® BadAss™ gate hinges, produces near frictionless movement with maintenance free usage.

Designed for gates where welding is not an option

Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.

High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.

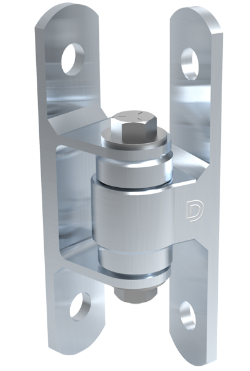

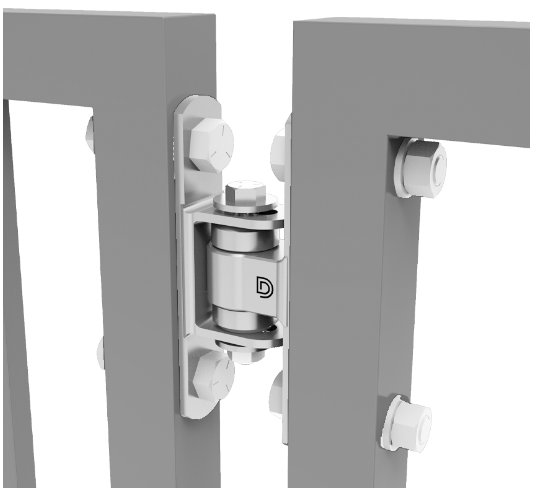

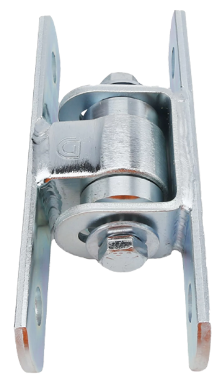

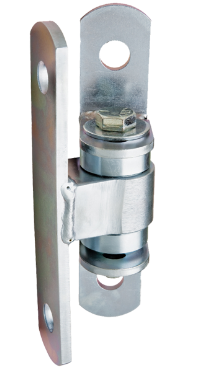

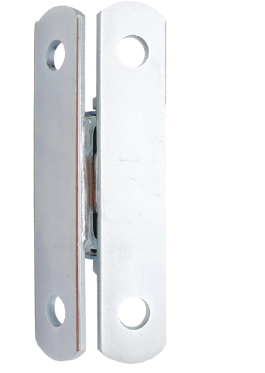

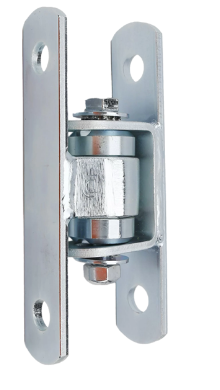

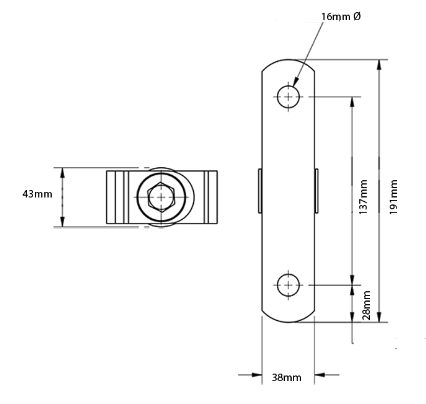

Features : STEEL TO STEEL

• Two sealed maintenance free bearings
• Horizontally adjustable
• Adjustable barrel for precise installations
• Flat, bolt-on brackets for through bolting
• Zinc plated steel
• Load rating per gate: 900kg (2,000 lbs)
• Maximum gate weight: 450kg (1,000 lbs)
• Steel body and bracket
• Hinge weight 1.6kg
• Supplied in trade pack - 1 each

Specifications

• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non Self-Closing
• Gate Material: Steel or Ornamental Iron
• Approximate Gate Width 2000mm
• Approximate Gate Height 3000mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 38mm+

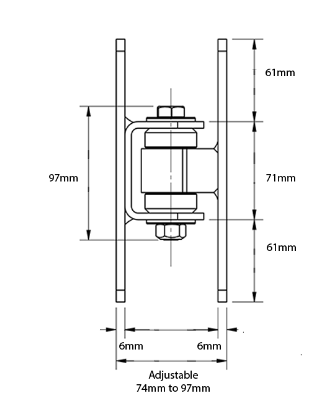

• Ideal Gate Gap: 74mm to 86mm
• Fixing Method: Bolt-On

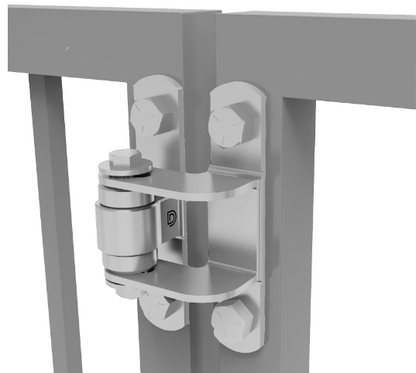

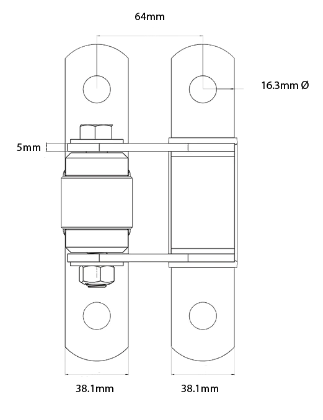

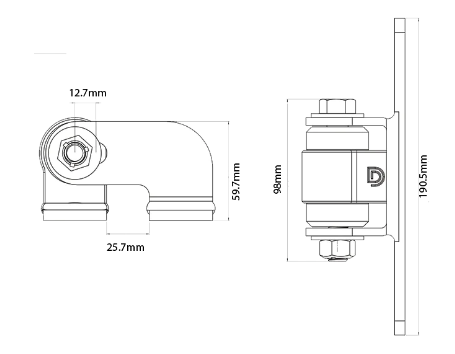

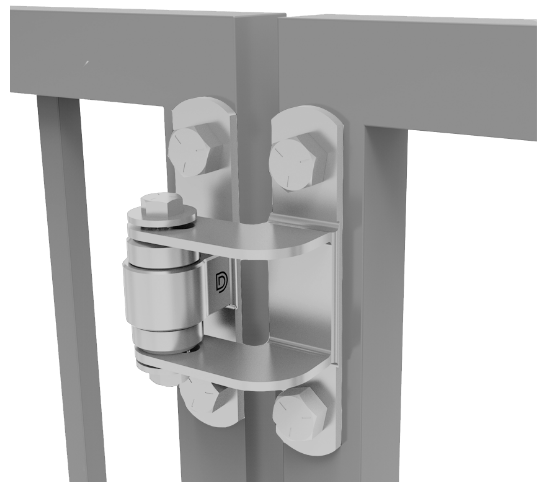

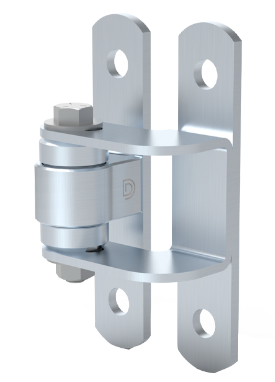

Features : FACE MOUNT

• Opens to a full 180°
• Welds to almost any gate
• Achieve gate gaps as small as 13mm
• Horizontally adjustable to 13mm
• High-temp bearings, safe to powder-coat
• Load rating per gate: 900kg
• Maximum gate weight: 500kg
• Corrosion and rust resistant zinc plating
• Safe to powdercoat once installed
• Steel bracket and body
• Steel yoke
• Hinge weight 1.7kg
• Supplied in trade pack - 1 each

Specifications

• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non Self-Closing
• Gate Material: Steel or Ornamental Iron
• Approximate Gate Width 2000mm
• Approximate Gate Height 3000mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 38mm+
• Ideal Gate Gap: 13mm to 25mm
• Fixing Method: Bolt-ON
• Finish : Zinc

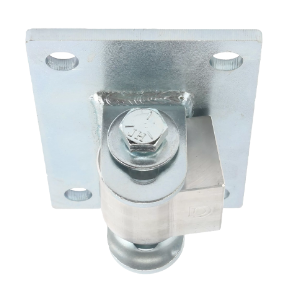

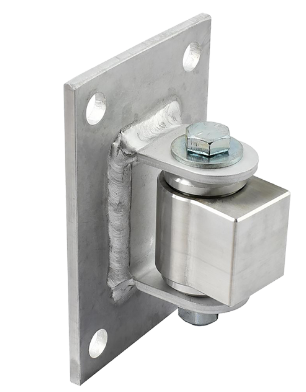

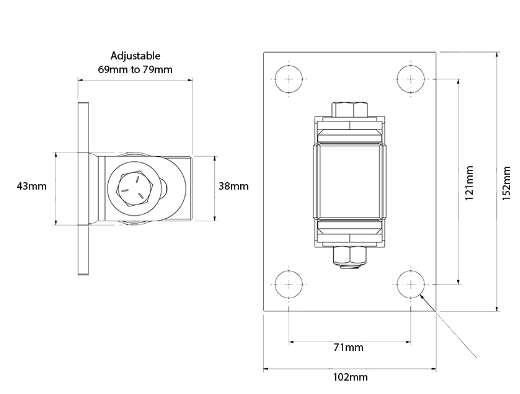

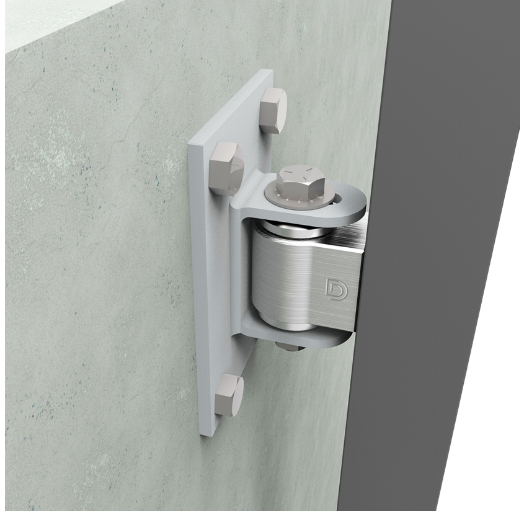

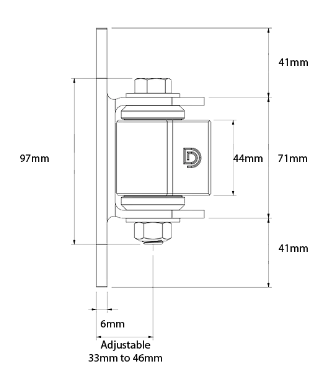

D&D Shut It® BadAss™ Half Bolt-on 102mm Hinge

With a wide mounting plate and four anchor points, the D&D Shut It® BadAss™ Half Bolt-on 102mm Hinge reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. D&D Shut It® BadAss™gate hinges are assembled in the U.S.A. with the industry’s first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

Features

• Manufactured from aluminium
• Made to bolt or weld to 100mm to 125mm fence posts
• Wider brackets enable anchor points to be positioned at the sides, rather than centre of fence post - reducing flexing, preventing fatigue in fence post
• High-temperature sealed bearings - safe to powder coat with hinges installed on gate
• No greasing, no maintenances. EVER!
• Precision bushing - distributes gate load for optimal performance and longer life
• CNC machined to perfection and near frictionless movement
• Maximum gate load 450kg
• Maximum gate weight 270kg
• Supplied in trade pack - 1 each

Specifications
Gate Type: Non Self-Closing
Gate Material: Aluminum
Approximate Gate Width: 1500mm
Approximate Gate Height: 2000mm
Gate Frame/Post Shape: Square-to-Square, Square-to-Round
Minimum Post Size: 38mm+
Ideal Gate Gap: 73mm to 86mm
Fixing Method: Bolt-On, Weld-On

Finish
Raw
