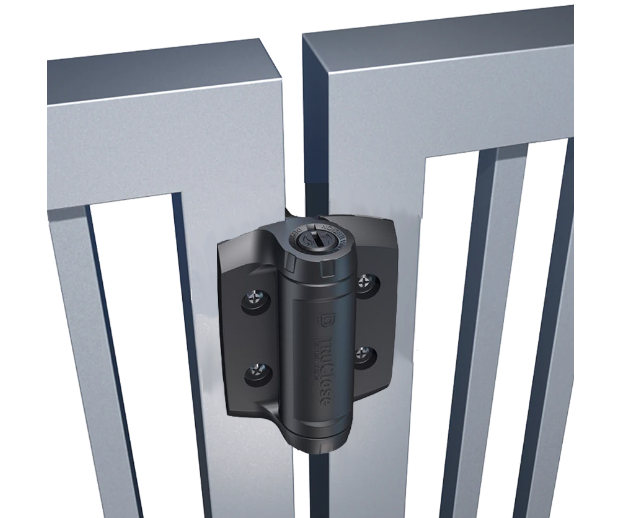

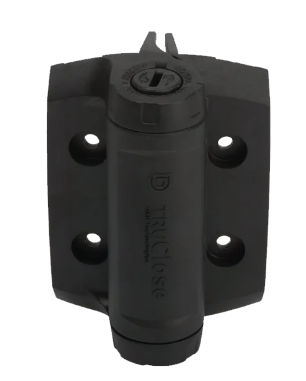

D&D Technologies DD TECH TRUCLOSE TCHD1A HVY DUTY HINGE - 1 ALIGN LEG & 2 ALIGN LEG WITH BLACK TRIM

D&D TRUCLOSE® HEAVY DUTY Hinges

A self-closing hinge for high traffic areas and pool gates

The D&D TruClose® Safety Gate Hinges are the worlds most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The D&D TruClose® HEAVY DUTY range of hinges are designed for heavy or high-traffic gates weighing up to 70kg. The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, D&D TruClose® hinges are ideal for child safety gates around swimming pools*, childcare centres, schools, homes, playgrounds and hotels/resorts. D&D TruClose® hinges are quick and easy to install and to adjust for self-closing speed.

They come standard with Black trim covers, which means there are no visible fasteners. Optional Polished or Chrome metallic trim covers are also available. The D&D TruClose® HEAVY DUTY hinges come in a range of other options, including some with side-fixing legs (to assist speedy installation and extra fixing strength), a MultiAdjust version offering remarkable 3-way adjustment (vertical, horizontal and tension adjustment) and a version for round-posted gates and fences (such as on tennis court gates etc.). Millions of these award-winning D&D TruClose® Safety Gate Hinges worldwide.

The optional D&D TruClose® Hinge Safety Cap helps prevent toddlers from using bottom hinge as a climbing foothold.
SKU: TCHDCAPS3

Features

• For pool and safety gates install a hinge safety cap (optional)
• Quick and easy to install
• Self-closes gates up 70kg (154 lbs)
• Won’t rust, bind, sag or stain

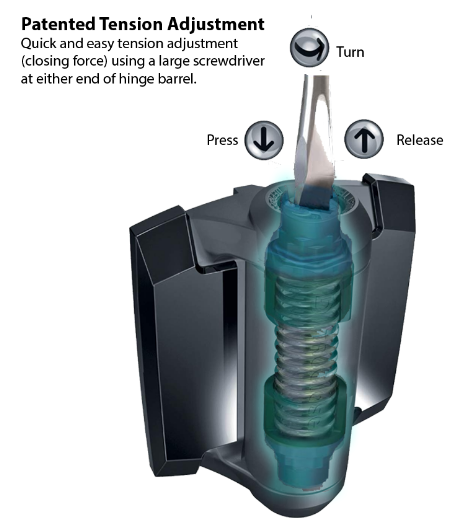

• Simple, adjustable closing tension (from either end of hinge)
• Super-strong polymer and stainless steel construction
• UV-stabilised and self-lubricating durability
• Decorative trim covers ensure no visible fasteners

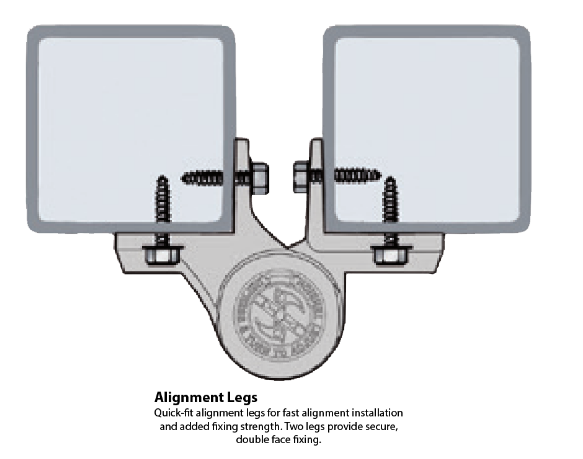

• Single side-fixing leg for faster alignment and added strength
• Suitable for metal gates

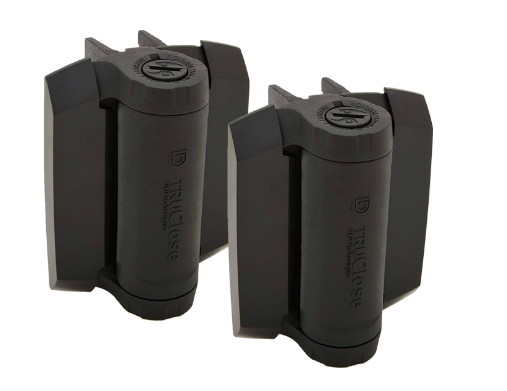

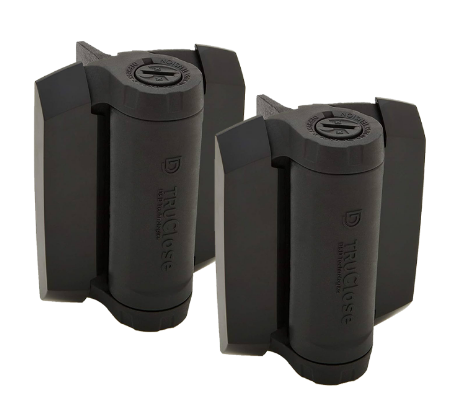

• Supplied in trade pack - 1 pair

* When installing D&D TruClose® hinges to a swimming pool gate always confirm any safety requirements with your local Council or safety authorities to ensure compliance.

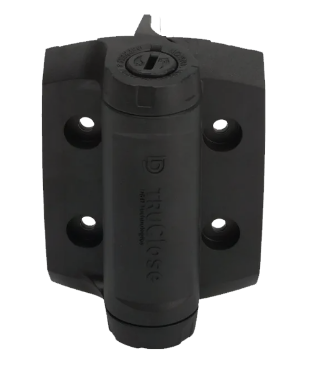

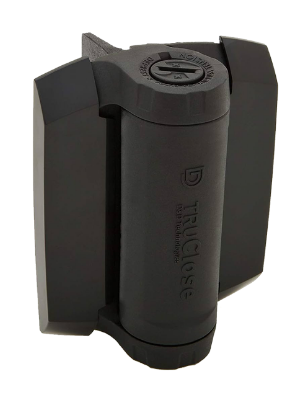

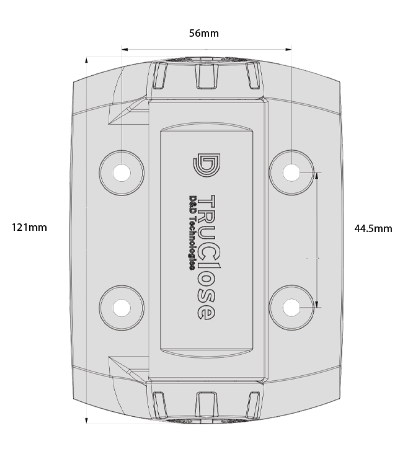

Specifications :1 ALIGN LEG

• Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Self-Closing Gate Weight: Up to 70kg
• Approximate Gate Width: 1200mm
• Approximate Gate Height: 1800mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 35mm+
• Ideal Gate Gap: 19mm
• Gap Variance: 9mm to 25mm
• Fixing Method: Screw-On

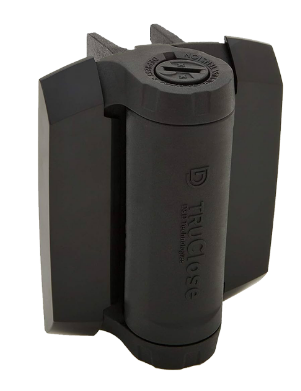

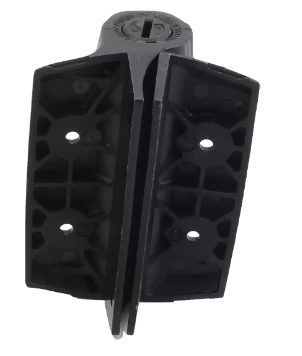

Specifications :2 ALIGN LEG

• Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Self-Closing Gate Weight: Up to 70kg
• Approximate Gate Width: 1200mm
• Approximate Gate Height: 1800mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 35mm+
• Fixed Gate Gap: 21mm
• No Gap Variance
• Gap Variance: 9mm to 25mm
• Fixing Method: Screw-On

Black
