D&D Technologies DD TECH SURECLOSE READYFIT HYDRAULIC HINGE/CLOSER SCREW-ON RF108 S
SKU: 74108313T
D&D Technologies DD TECH SURECLOSE READYFIT HYDRAULIC HINGE/CLOSER SCREW-ON RF108 S
D&D SURECLOSE® READYFIT 108

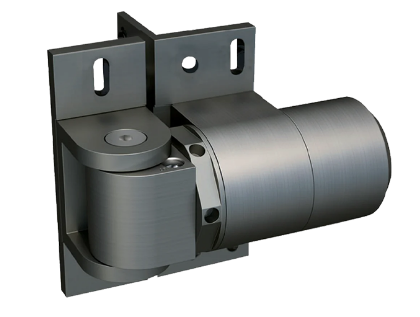

An externally mounted, hydraulic self-closing hinge-closer
The hydraulic D&D SureClose® Gate Closers and Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint D&D SureClose® gate closers and hinges.
Each D&D SureClose® ReadyFit model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It is remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminium.
Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts (not included)
An externally mounted, hydraulic self-closing hinge-closer
The hydraulic D&D SureClose® Gate Closers and Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint D&D SureClose® gate closers and hinges.
Each D&D SureClose® ReadyFit model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It is remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminium.
Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts (not included)
Features
Specifications
Finish
Black Anodised
- Hydraulic hinge closer
- Controlled quiet close
- External mounting

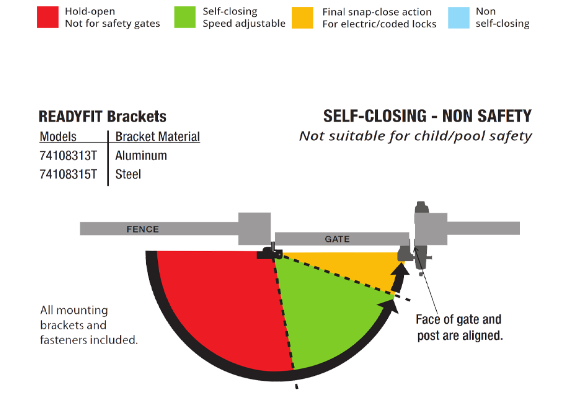

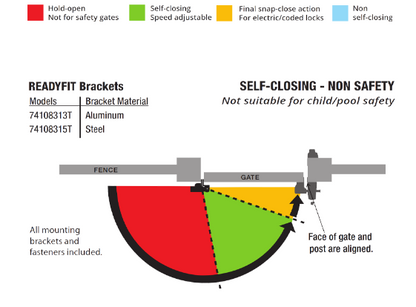

- Gap variance of 12mm to 35mm
- Self-closes gates up to 120kg (260 lbs) – See Chart
- Maximum opening angle 178°
- Self-closing from 83°
- Multiple mounting options, includes fasteners
- Safety gate models available
- Final Snap Close Action on all 108 models
- Alignment legs give double face-fixing strength
- Emergency Override feature for safety and longevity
- Minimum fence post size 50mm
- Supplied in trade pack
Specifications
- Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
- Gate Type: Self-Closing
- Gate Material: Aluminium, Steel/Ornamental Iron
- Self-Closing Gate Weight: Up to 120kg (260lbs) in combination with hinge (refer chart)
- Approx Gate Size: 1200mm Width x 1800mm Height
- Gate Frame/Post Shape: Square-to-Square
- Minimum Post Size: 50mm
- Ideal Gate Gap: 12mm to 35mm
- Fixing Method: Aluminium Screw-On
Finish
Black Anodised
