HENDERSON MANSION/MAJESTIC BOTTOM ROLLER BRASS

HENDERSON MANSION/MAJESTIC BOTTOM ROLLER NYLON

Product Description :

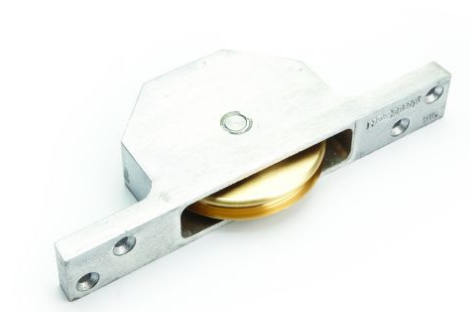

Henderson Majestic Bottom Rolling

Majestic high quality bottom roller gear and fittings are ideally suited to high class joinery installations.Designed for heavy straight sliding partitions especially fully glazed patio or showroom doors. Also suitable for flush or panelled doors.

The bottom roller design is suited to applications where the supporting structure or lintel is insufficient for the weight of the door, or where headroom is limited.To cover any opening, any number of doors can be used on single or double track.To accommodate different building designs, doors can slide to one or both sides.

Features

• Suits timber doors
• Maximum door weight 270kg per leaf
• Brass roller
• Aluminium body

Door Specification
For Individual Doors:

• Max Door Weight 270kg
• Minimum Door Thickness 44-57mm
• Maximum Door Height 3300mm

Doors can be constructed with a deep bottom section of minimum depth of 175mm to accommodate the concealed, mortised bottom rollers.
