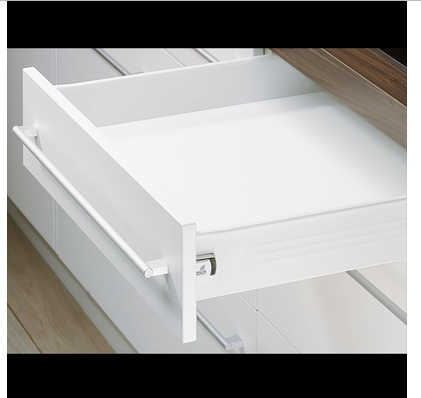

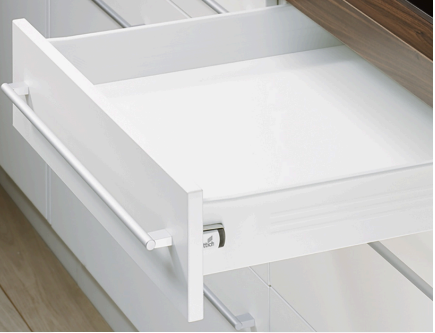

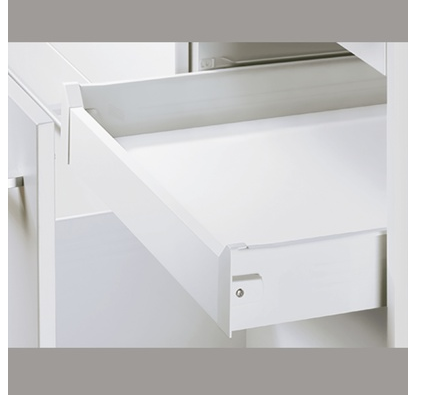

Hettich Germany MultiTech Drawer set, System, White With 2 Front Connectors Height 86mm / Nominal Length Available in 6 Sizes : 250mm , 350mm ,400mm ,450mm ,500mm & 550mm
SKU: 9127875
- 25 kg load capacity to EN 15338, Level 2
- 1 set drawer profile
- 1 set cabinet body rail, partial extension runner
Technical details
| System colour | white |
| System height | 86 |
| Nominal length | 250 mm |
| Type of installation | for screwing on |
| Drawer type | single walled with drawer runner knocked down |
| Variants | all-inclusive drawer set |
| Mounting side | left and right |
| Material | steel |
| Components | all-inclusive drawer set |
| Load class | 25 kg |
| Cabinet body depth | 255 mm |
| EAN | 4023149387104 |
| Previous order no. | 50013 |
| Order no. | 9127875 |
| PU | 10 |
Technical details
| System colour | white |
| System height | 86 |
| Nominal length | 350 mm |
| Type of installation | for screwing on |
| Drawer type | single walled with drawer runner knocked down |
| Variants | all-inclusive drawer set |
| Mounting side | left and right |
| Material | steel |
| Components | all-inclusive drawer set |
| Load class | 25 kg |
| Cabinet body depth | 355 mm |
| EAN | 4023149387128 |
Technical details
| System colour | white |
| System height | 86 |
| Nominal length | 400 mm |
| Type of installation | for screwing on |
| Drawer type | single walled with drawer runner knocked down |
| Variants | all-inclusive drawer set |
| Mounting side | left and right |
| Material | steel |
| Components | all-inclusive drawer set |
| Load class | 25 kg |
| Cabinet body depth | 405 mm |
| EAN | 4023149491825 |
Technical details
| System colour | white |
| System height | 86 |
| Nominal length | 450 mm |
| Type of installation | for screwing on |
| Drawer type | single walled with drawer runner knocked down |
| Variants | all-inclusive drawer set |
| Mounting side | left and right |
| Material | steel |
| Components | all-inclusive drawer set |
| Load class | 25 kg |
| Cabinet body depth | 455 mm |
| EAN | 4023149491900 |
| Previous order no. | 50019 |
| Order no. | 9127883 |
Technical details
| System colour | white |
| System height | 86 |
| Nominal length | 500 mm |
| Type of installation | for screwing on |
| Drawer type | single walled with drawer runner knocked down |
| Variants | all-inclusive drawer set |
| Mounting side | left and right |
| Material | steel |
| Components | all-inclusive drawer set |
| Load class | 25 kg |
| Cabinet body depth | 505 mm |
| EAN | 4023149491924 |
| Previous order no. | 50021 |
| Order no. | 9127885 |
Technical details
| System colour | white |
| System height | 86 |
| Nominal length | 550 mm |
| Type of installation | for screwing on |
| Drawer type | single walled with drawer runner knocked down |
| Variants | all-inclusive drawer set |
| Mounting side | left and right |
| Material | steel |
| Components | all-inclusive drawer set |
| Load class | 25 kg |
| Cabinet body depth | 555 mm |
| EAN | 4023149387142 |
| Previous order no. | 50023 |
| Order no. | 9127887 |
