Iver Cambridge Door Knob 13840 Stepped Backplate Distressed Nickel - Passage ,Privacy & Entrance

Iver Cambridge Door Knob 13840 Stepped Backplate  Distressed Nickel - Passage

 ,Privacy & Entrance

The smooth rounded form of the Cambridge references the Victorian era, whilst its simplicity still provides a high level of versatility in application. The Cambridge is perfectly suited to a concealed fix rose or a variety of backplates.

The Cambridge knob can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

Please look at other listings of other colors or contact us for further information

Door Function

Passage  Privacy  Entrance

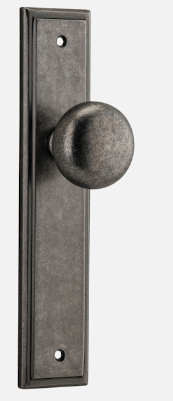

For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.

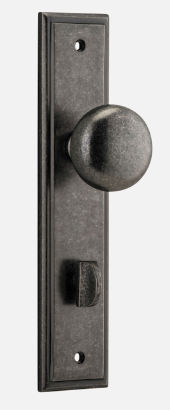

For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.

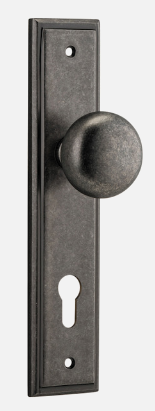

For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

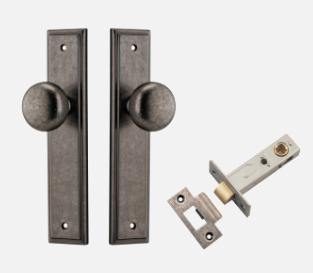

What's in the box Passage kit
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

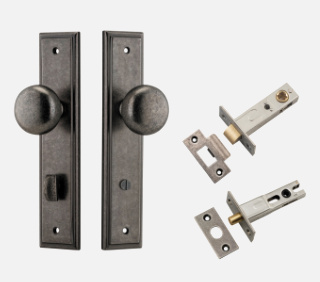

What's in the box Privacy kit
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual

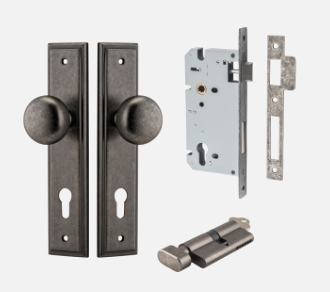

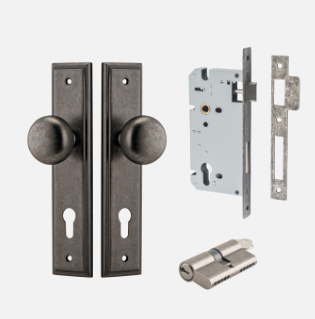

What's in the box Entrance kit
2 x Levers / Knobs on Backplates of your choice
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

Notes : -

All Cambridge knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.

Inbuilt privacy lock options are available for levers on round and square rose.

Features & Benefits
Fire Rated
Successfully fire rated to 2 hours*
* Accessories are not fire rated

Specifications
Height    :    237mm
Width      :    50mm
Projection    :    63mm
Centre to centre   :    205mm
