Trucut Heavy Duty Dasqua Outside Micrometer 0-25mm & 25-50mm

Trucut Heavy Duty Dasqua Outside Micrometer 0-25mm & 25-50mm

Description

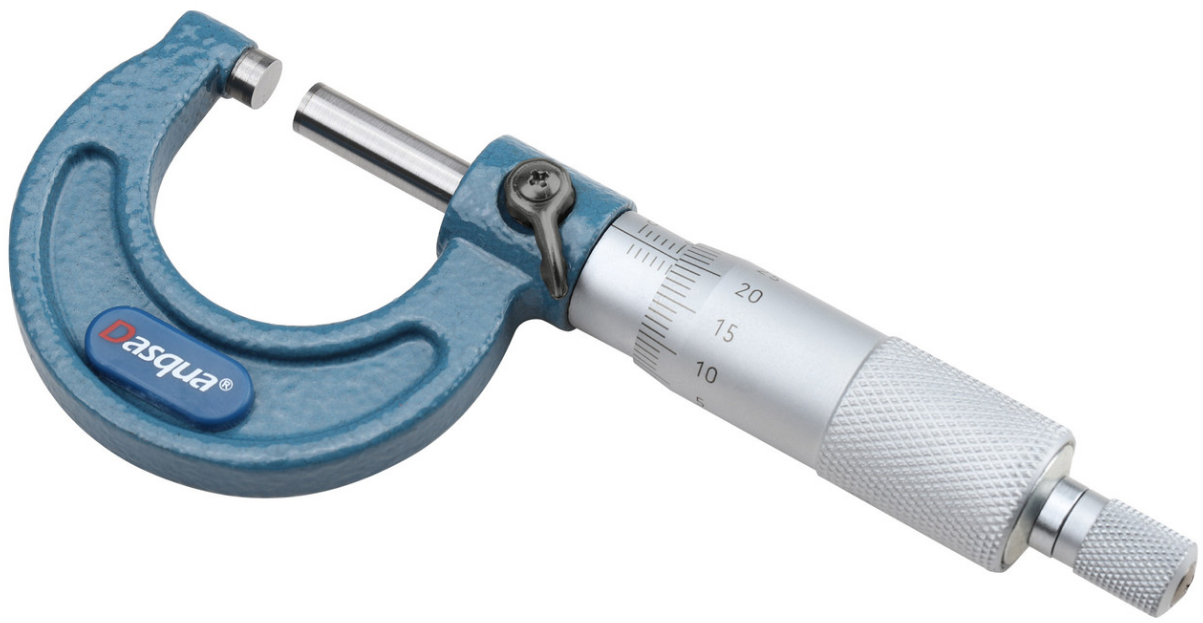

Outside Micrometer 0-25mm

Measuring Range: 0~25 mm / 0~1’’

Graduation: ±0.01 mm / 0.0004’’

Accuracy: 0.004 mm / 0.0001575’’

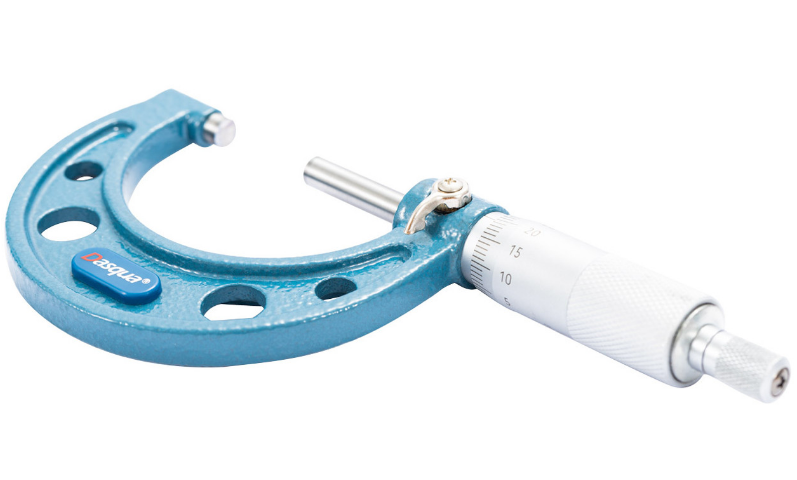

Outside Micrometer 25-50mm

Measuring Range: 25~50 mm / 0~1’’

Graduation: ±0.01 mm / 0.0004’’

Accuracy: 0.004 mm / 0.0001575’’

• Strictly made in accordance with DIN 863.

• Spindle thread hardened, ground and lapped for ultimate accuracy.

• With spindle lock.

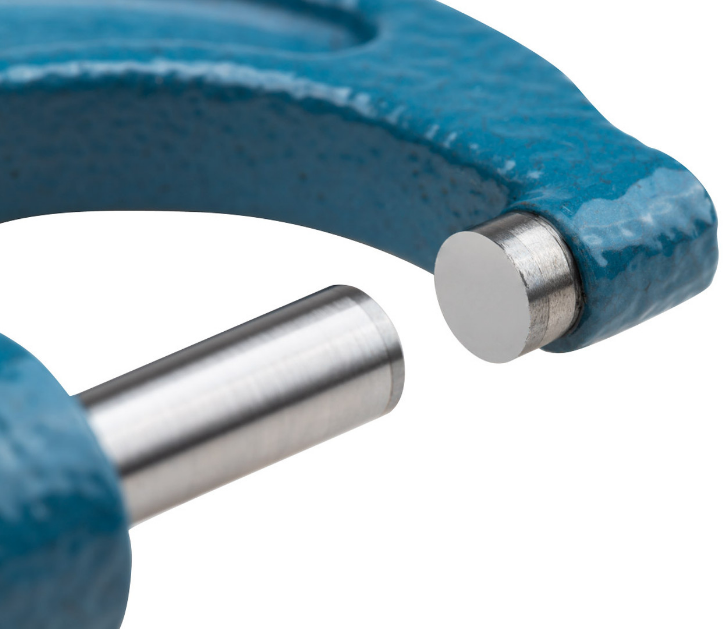

• New special carbide used on measuring anvil instead of traditional easy-wear off carbide tip. The measuring faces of the anvil and spindle directly contact with the object to be measured, which means these 2 surfaces are most likely to chip. Carbide-tipped significantly increase the using life of the micrometer.

• Precision Ground Stainless Steel threading rod replacing alloy/carbon steel threading rod mostly used in the industry.

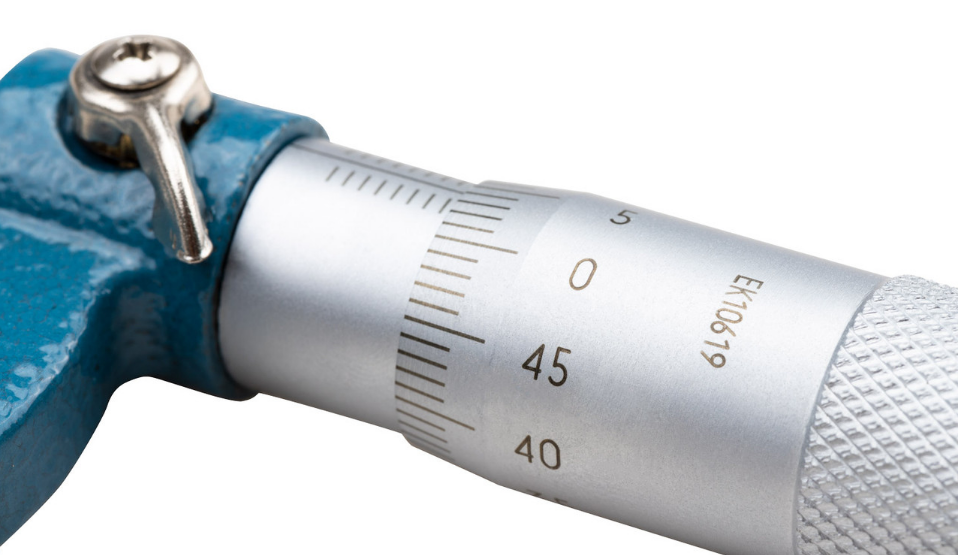

• Clear graduations laser-etched on satin chrome finish for easy reading.

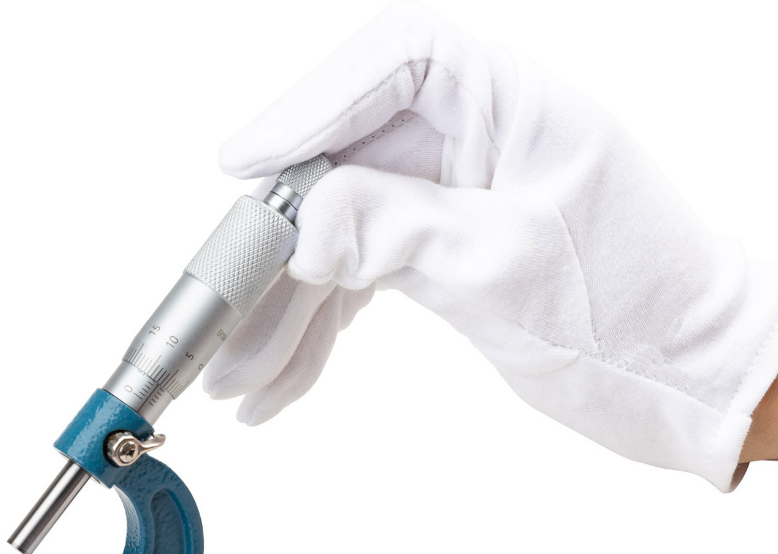

• With ratchet stop for constant force(5- 8N 20% better than the normal standard of 5-10N).
