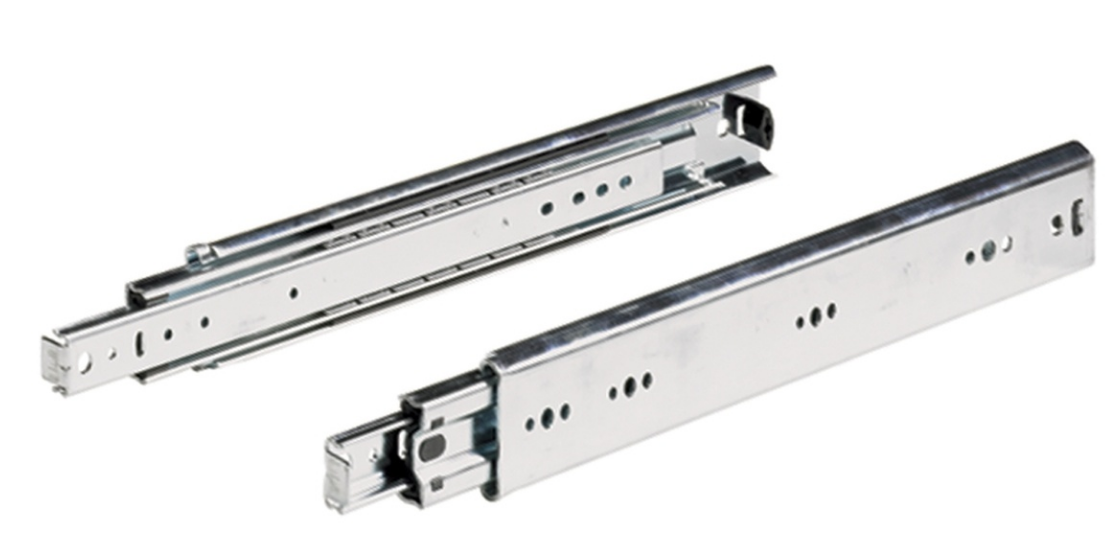

Hettich Germany Ball Bearing Runner, Mounted on Side, Dimensions ( Height 58mm x 19mm Width ) Length - Available in 6 sizes : 450 mm, 500mm ,550mm ,600mm ,650mm ,700mm - 90 kg
SKU: 41393
- Over extension runner with pull-out stop and roll-out prevention
- Release catch for quickly separating drawer from cabinet body
- Precision control for moving smoothly and freely and high lateral stability
- For drawers with grooved, rebated or flush fitted drawer bottom panel
- Load capacity to EN 15338, Level 1
- Galvanised steel, blue passivated
-
Technical details
Nominal length 450 mm Mounting side left and right Colour blue passivated Load capacity kg 90 kg Drawer length SL 450 mm Minimum cabinet body depth KT 454 mm Hole spacing b1 136 mm Hole spacing b2 139 mm Hole spacing C 383.5 mm EAN 4023149413933 Type of installation Side installation Components Drawer runners
Nominal length 500mm
| Minimum cabinet body depth KT | 504 mm |
| Hole spacing b1 | 161 mm |
| Hole spacing b2 | 164 mm |
| Hole spacing C | 433.5 mm |
| EAN | 4023149413940 |
Nominal length 550mm
| Minimum cabinet body depth KT | 554 mm |
| Hole spacing b1 | 186 mm |
| Hole spacing b2 | 189 mm |
| Hole spacing C | 483.5 mm |
| EAN | 4023149413957 |
Nominal length 600mm
| Minimum cabinet body depth KT | 604 mm |
| Hole spacing b1 | 211 mm |
| Hole spacing b2 | 214 mm |
| Hole spacing C | 533.5 mm |
| EAN | 4023149413964 |
Nominal length 650mm
| Minimum cabinet body depth KT | 654 mm |
| Hole spacing b1 | 236 mm |
| Hole spacing b2 | 239 mm |
| Hole spacing C | 583.5 mm |
| EAN | 4023149413971 |
Nominal length 700mm
| Minimum cabinet body depth KT | 704 mm |
| Hole spacing b1 | 261 mm |
| Hole spacing b2 | 264 mm |
| Hole spacing C | 633.5 mm |
| EAN | 4023149413988 |
