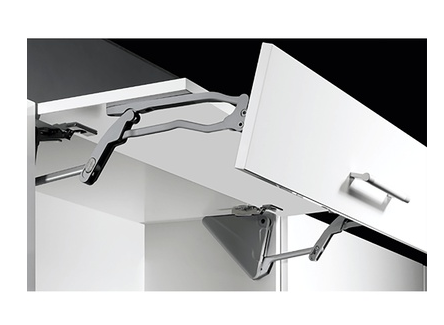

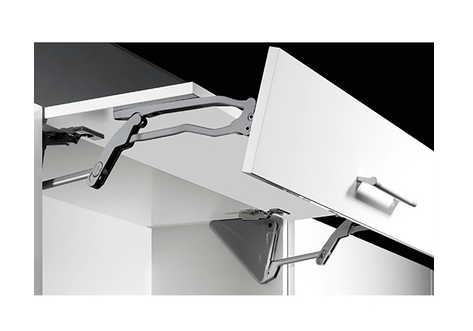

Hettich Germany Folding flap fitting Lift Advanced HF Inside Cabinet Body Height Available in 5 sizes : 440 - 550mm ,551 - 610mm ,611 - 700mm ,701 - 770mm & 771 - 925mm

Product Details :

• For wooden fronts or framed wooden fronts or fronts with 19 mm wide aluminium profile
• Adjustable opening force
• Silent System integrated – soft closing action
• Flap weight including handle 3.8 – 15.4 kg
• Flaps of unequal height can be selected for an internal cabinet body height of 490 mm and over

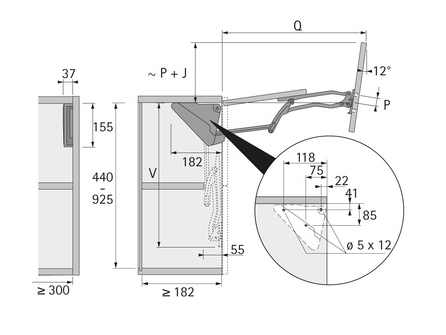

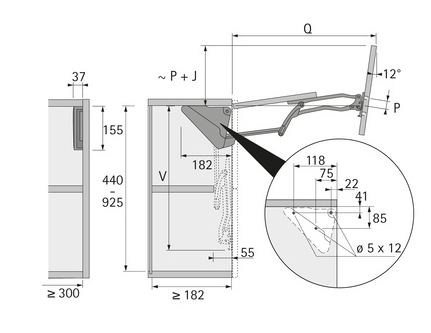

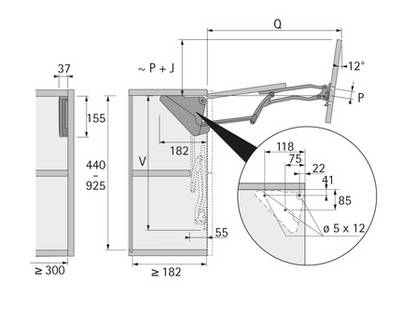

• Three-dimensional front adjustment: vertical ± 2 mm, horizontal ± 2 mm,
  tilt / depth ± 2 mm
• Cross member or centre hinge not required
• Powder coated aluminium, silver / grey plastic
• It is recommended to use fast assembly concealed hinges with an opening angle of at least 110°, e.g. Sensys 8645i or Intermat 9943, please order separately
• Please order gas springs separately

Set comprises:

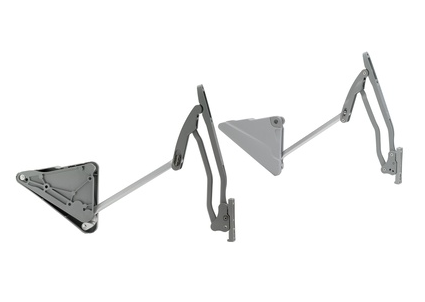

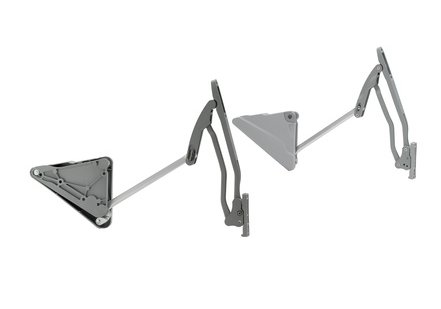

• 1 pair of flap fittings, right and left
• 1 pair of cover caps, right and left
• Fixing material

Advice:You will find an overview of gas springs for adapting to different flap door weights at the bottom of the "Completing & installation" tab. Refer to "Gas spring overview" document.

SKU:9079605 ,9079607 ,9079610 ,9079614 ,9079615
