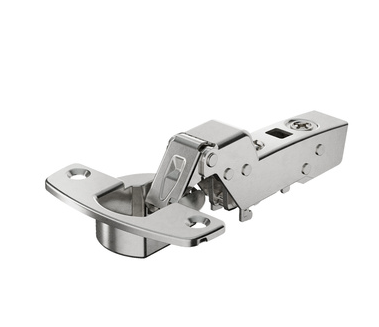

Hettich Germany Sensys 110° Hinge with Integrated Silent System Overlay ,Half overlay & Inset TH-Drilling Pattern 52 x 5.5 mm, for Screwing On Finish Nickle plated

Brand: Hettich Germany

SKU: 9071205

  • $16.36
    Unit price per
Tax included. Shipping calculated at checkout.



Please note that this product may be a special order. Please double check it meets your requirements before ordering. More information can be found in our Refund Policy.

Our despatches are made directly from the warehouse. Please contact us should you wish to see a product as we don't stock all products at our store.


Product Details :

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 24 mm
  • Door mounting option overlay
  • Drilling pattern TH 52 x 5,5 mm
  • Cup depth 12.8 mm
  • Installation for screwing on
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
Technical details : Overlay
Design 90° construction
Door type Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm)
User friendly features with integrated silent system
Door mounting option overlay
Opening angle 110 °
Min. door thickness 15 mm
Max. door thickness 24 mm
Cup version TH 52
Base 12.5 mm
Cup diameter 35 mm
Cup depth 12.8 mm
Type of installation for screwing on
Hinge surface finish steel nickel plated
Drilling pattern TH 52 x 5,5 mm
Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Mounting hole -
Stay closed function Yes
Finish nickel plated
EAN 4023149030901
Order no. 9071205
PU 200
Technical details : Half overlay
Design 90° construction
Door type Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm)
User friendly features with integrated silent system
Door mounting option half overlay
Opening angle 110 °
Min. door thickness 15 mm
Max. door thickness 24 mm
Cup version TH 52
Base 3 mm
Cup diameter 35 mm
Cup depth 12.8 mm
Type of installation for screwing on
Hinge surface finish steel nickel plated
Drilling pattern TH 52 x 5,5 mm
Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Mounting hole -
Stay closed function Yes
Finish nickel plated
EAN 4023149652202
Order no. 9071206
PU 200



Technical details : Inset
Design 90° construction
Door type Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm)
User friendly features with integrated silent system
Door mounting option inset
Opening angle 110 °
Min. door thickness 15 mm
Max. door thickness 24 mm
Cup version TH 52
Base -4 mm
Cup diameter 35 mm
Cup depth 12.8 mm
Type of installation for screwing on
Hinge surface finish steel nickel plated
Drilling pattern TH 52 x 5,5 mm
Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Mounting hole -
Stay closed function Yes
Finish nickel plated
EAN 4023149033681
Order no. 9071207
PU 200
