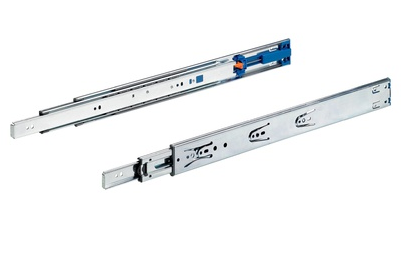

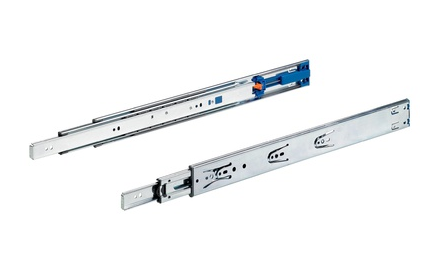

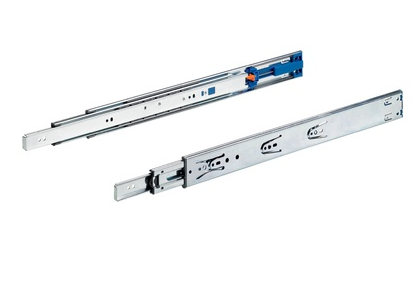

Hettich Germany Soft Close ( Silent System ) Ball Bearing Runner, Mounted on side, Dimensions ( Height 46mm x 12.7mm Width ) Length - Available in 6 sizes : 300mm ,400mm ,450mm ,550mm ,600mm ,650mm - 35 kg
SKU: 9114271
-

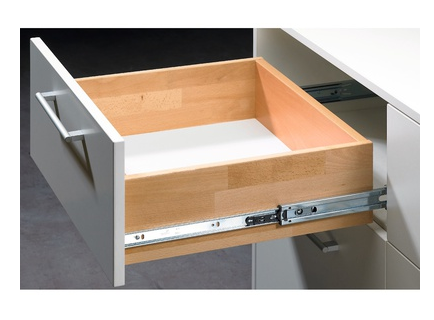

Full extension runner with integrated Silent System
-
Release catch for quickly separating drawer from cabinet body
-
Precision control for moving smoothly and freely and high lateral stability
-
For drawers with grooved, rebated or flush fitted drawer bottom panel
-
Load capacity to EN 15338, Level 2
-
Galvanised steel, blue passivated
-
For a nominal length of 300, drawer travel is just 290 mm
Technical details
| Nominal length | 300 mm |
| Mounting side | left and right |
| Colour | blue passivated |
| Load capacity kg | 35 kg |
| Drawer length SL | 300 mm |

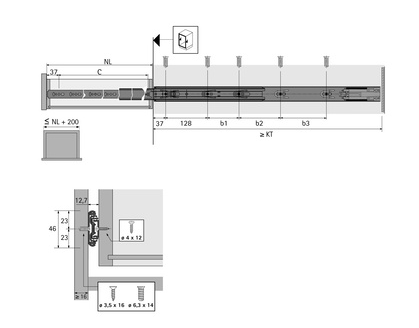

| Minimum cabinet body depth KT | 304 mm |
| Hole spacing C | 171 mm |
| EAN | 4023149601149 |
| Type of runner | Visible runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Silent System |
| Type of installation | Side installation |
| Components | Drawer runners |
| Order no. | 9114271 |
| PU | 10 |
Technical details
| Nominal length | 400 mm |
| Mounting side | left and right |
| Colour | blue passivated |
| Load capacity kg | 35 kg |
| Drawer length SL | 400 mm |
| Minimum cabinet body depth KT | 404 mm |
| Hole spacing b1 | 64 mm |
| Hole spacing C | 254 mm |
| EAN | 4023149128004 |
Technical details
| Nominal length | 450 mm |
| Mounting side | left and right |
| Colour | blue passivated |
| Load capacity kg | 35 kg |
| Drawer length SL | 450 mm |
| Minimum cabinet body depth KT | 454 mm |
| Hole spacing b1 | 96 mm |
| Hole spacing C | 294 mm |
| EAN | 4023149601187 |
Technical details
| Nominal length | 550 mm |
| Mounting side | left and right |
| Colour | blue passivated |
| Load capacity kg | 35 kg |
| Drawer length SL | 550 mm |
| Minimum cabinet body depth KT | 554 mm |
| Hole spacing b1 | 96 mm |
| Hole spacing b2 | 128 mm |
| Hole spacing C | 394 mm |
| EAN | 4023149601217 |
Technical details
| Nominal length | 600 mm |
| Mounting side | left and right |
| Colour | blue passivated |
| Load capacity kg | 35 kg |
| Drawer length SL | 600 mm |
| Minimum cabinet body depth KT | 604 mm |
| Hole spacing b1 | 96 mm |
| Hole spacing b2 | 160 mm |
| Hole spacing C | 444 mm |
| EAN | 4023149601224 |
Technical details
| Nominal length | 650 mm |
| Mounting side | left and right |
| Colour | blue passivated |
| Load capacity kg | 35 kg |
| Drawer length SL | 650 mm |
| Minimum cabinet body depth KT | 654 mm |
| Hole spacing b1 | 96 mm |
| Hole spacing b2 | 128 mm |
| Hole spacing b3 | 96 mm |
| Hole spacing C | 494 mm |
| EAN | 4023149601231 |
