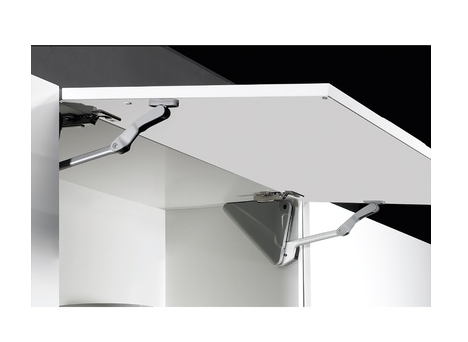

Hettich Germany Upward Opening Flap Fitting Lift Advanced HK, 276mm - 720mm

Product Details :

• For wooden fronts or framed wooden fronts or fronts with 19 mm wide aluminium profile
• Adjustable opening force
• Silent System integrated – soft closing action
• Flap weight including handle 2.0 – 17.9 kg
• Three-dimensional front adjustment at concealed hinge
• Powder coated aluminium, silver / grey plastic
• It is recommended to use fast assembly concealed hinges with an opening angle of at least 95°, e.g. Sensys 8645i or Intermat 9943, please order separately
• Please order gas springs separately

Set comprises:

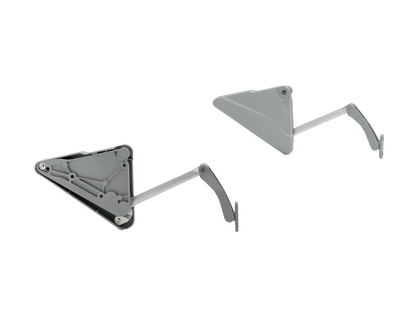

• 1 pair of flap fittings, right and left
• 1 pair of cover caps, right and left
• Fixing material

Advice:You will find an overview of gas springs for adapting to different flap door weights at the bottom of the "Completing & installation" tab. Refer to "Gas spring overview" document.
