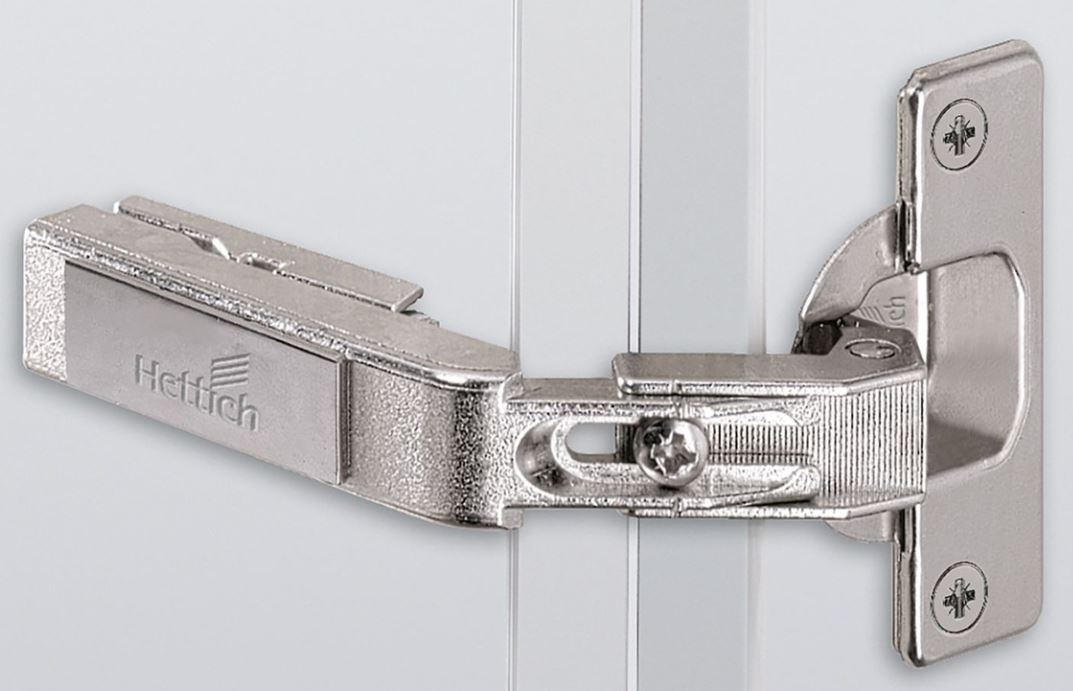

Hettich Germany Intermat hinge for corner cabinet folding doors without self closing feature (Intermat 9930), overlay, Opening angle 50° / 65°, TH-drilling pattern 52 x 5.5 mm, with expanding sockets (ø 10 x 11) with mounting plate

• Intermat hinge for corner cabinet folding doors
• Without self closing feature (Intermat 9930)
• Quality classification under EN 15570, Level 2
• Opening angle 50° / 65°
• For door thickness 15 - 21 mm

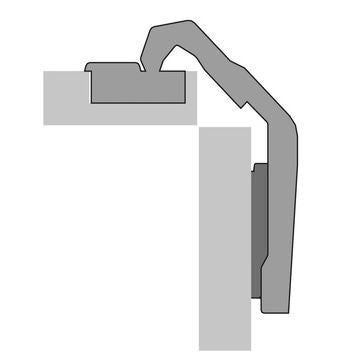

• Door mounting option overlay

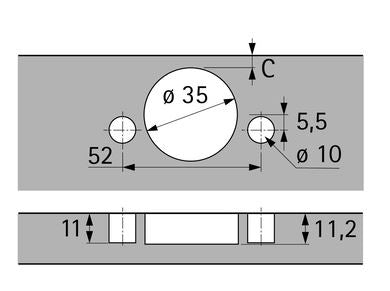

• TH - drilling pattern 52 x 5.5 mm
• Cup depth 10.5 mm
• Installation with expanding sockets
• Integrated diagonal adjustment +9.5 mm / -9.5 mm
• Integrated overlay adjustment, see sketch
• Integrated depth adjustment, see sketch
• Height adjustment at mounting plate
• steel / die-cast zinc nickel plated


HINGE COVER NOT INCLUDED
